Yealink EHS61 Adapter

Talk and Receive Calls Everywhere with the Yealink EHS61 Adapter

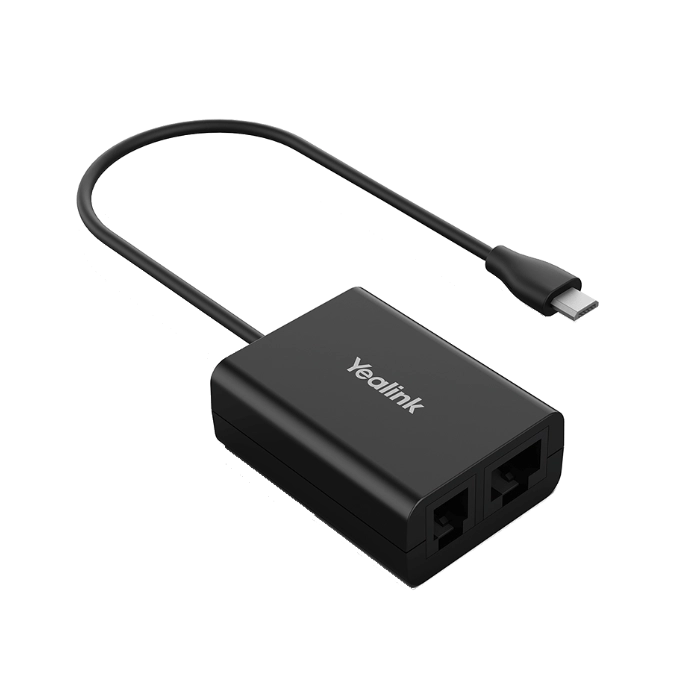

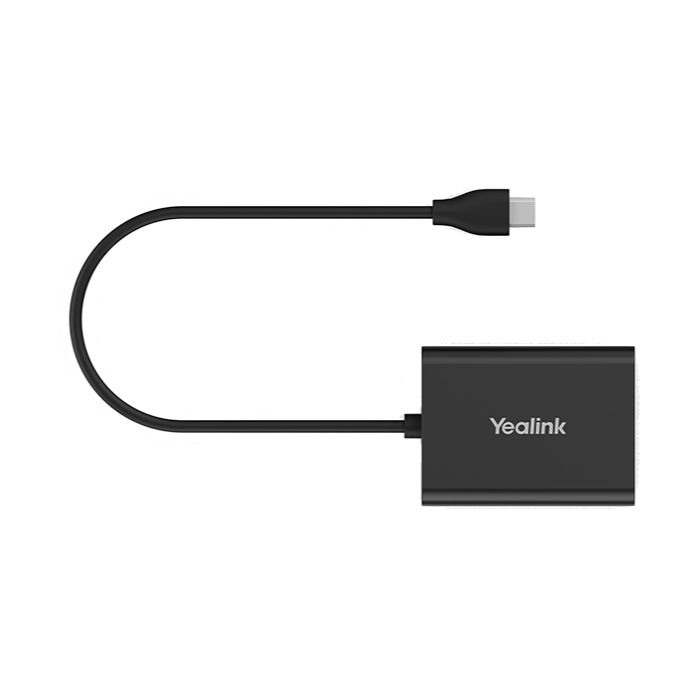

The advanced Yealink EHS Headset Adapter | EHS61 provides a technical interface between your Yealink DECT headset and a compatible deskphone (Mitel/Unify/Yealink T2x & T4xG).

The unit is easy to install. Its plug-and-play effectively allows you to remotely control your phone calls, including answering, hanging up, holding, and adjusting the volume.

The Yealink EHS61 has been especially designed to ensure maximum productivity in business applications such as receptions and call centers, and is an ideal choice for the Corporate, Financial, Health, Governmental, Educational, Industrial, and SME/SoHo market sectors.

Yealink EHS Adapter Required New Versions of WH62 & WH63 | EHS61 Notes

Only the new hardware of WH62 and WH63 support the EHS61. There are two ways to determine new hardware:

1. “EHS61 Supported” is marked on the box:
2. The base of the headset is marked with EHS61 Supported and a V1 logo:

EHS61 Adapter Phone Connections

Main Features

• Compatible with Yealink wireless headsets (newer versions of WH62/WH63)
• Perfectly compatible with Mitel/Unify/Yealink T2x/T4xG IP phones
• Plug-and-play
• Incoming calls are signaled in the headset earpiece
• Control calls through remote wireless headset:
  • Answer calls
  • End calls
  • Adjust volume

Physical Features

• 1 x Micro USB port for Yealink wireless headset (WH62/WH63), cable length 20cm.
• 1 x TR9-5 (8 pins) to RJ9 (4 pins) & TR9-5 (8 pins) to RJ45 (8 pins) cable to connect Mitel & Unify phones, EHS61 and headset port through the included cable.
• 1 x RJ9 (4 pins) to RJ9 (4 pins) & RJ45 (8 pins) to RJ12 (6 pins) cable to connect the Yealink desk phone and EHS61 through the included cable.

Phone Model Compatibility

Mitel

• 5370, 5380
• 5370ip, 5380ip
• 6735i, 6737i, 6739i
• 6753i, 6755i, 6757i, 6757i CT
• 6771, 6773, 6775
• 6773ip, 6775ip
• 6867, 6869
• 6865i, 6867i, 6869i
• 6920, 6930
• 7434ip, 7444ip

Unify

• OpenScape IP35G/55G
• OpenStage 30, 40, 60, 80, 410, 420, 500, 600
• CP400 SIP, CP600 SIP, CP700 SIP
• CP600E SIP, CP700X SIP
• CP110, CP210
• CP400T, CP200T

Yealink

• T27G, T29G
• T40P, T40G
• T41P
• T42G
• T46G
• T48G
• T49G

Included in the EHS61 box

• EHS61
• Cable A (for connecting Mitel & Unify phones)
• Cable B (for connecting Yealink desk phones)
• Cable C (for connecting Yealink desk phones)
• User Guide
